Insertion type turbine flowmeters

Turbine type flowmeter

Turbine flowmeters use the mechanical energy of the fluid to rotate a “pinwheel" (rotor) in the flow stream. Blades on the rotor are angled to transform energy from the flow stream into rotational energy. The rotor shaft spins on bearings. When the fluid moves faster, the rotor spins proportionally faster. Turbine flowmeters now constitute 7% of the world market.

Shaft rotation can be sensed mechanically or by detecting the movement of the blades. Blade movement is often detected magnetically, with each blade or embedded piece of metal generating a pulse. Turbine flowmeter sensors are typically located external to the flowing stream to avoid material of construction constraints that would result if wetted sensors were used. When the fluid moves faster, more pulses are generated. The transmitter processes the pulse signal to determine the flow of the fluid. Transmitters and sensing systems are available to sense flow in both the forward and reverse flow directions.

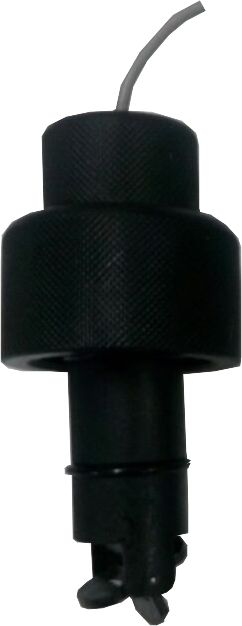

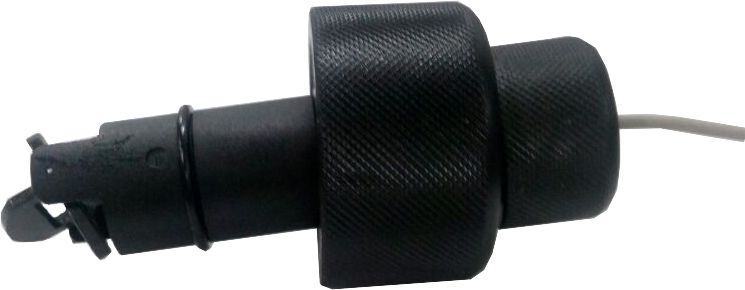

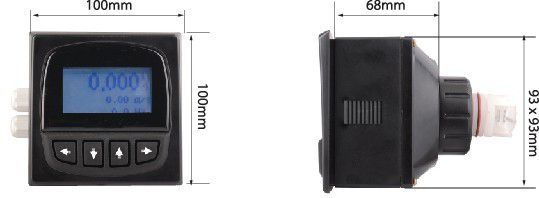

Model : LK.PDD-500

Connection : 1"
Measuring range : 0.3 ... 6 m/sn
Accuracy : %1
Output : 4-20 mA / passive puls / RS485
Possible bore diameters :DN10.... DN50
Pressure range : 10 Bar Max.
Temperature : Max 140 C
Electrical protection :IP65
Power supply : 5 ... 24 VDC
Body material : PVDF
Turbine material : PVDF
Mounting position :Horizontal and vertical
Seal : viton ,EPDM

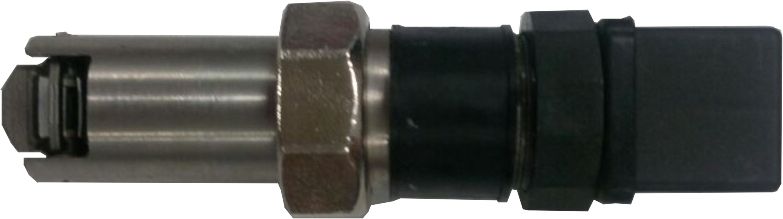

Model : LK.PDD-F1/F2
F1 ( short model ) : 1/2" .... 1 1/2" ( DN15...DN40)
Connection : 3/4"
Measuring range : 0.25 ... 4 m/sn
Accuracy : %1
Output : Pulse NPN Bağlanabilecek Ölçü :DN15´den DN40´a kadar
Pressure range : 10 Bar Max.
Temperature : Max.70 C
Electrical protection :IP67
Power supply : 5 ... 24 VDC
Body material : ABS Plastic
Turbine material : ABS Plastik
Mounting position :Horizontal and vertical
Seal : FPM

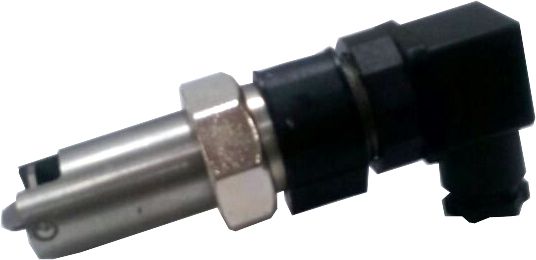

Model : LK.PDD-F3
Connection : 1"
Measuring range : 0.25 ... 4 m/sn
Accuracy : %1
Output : Pulse NPN square wave
Possible bore :DN25.... DN400
Pressure : 20 Bar Max.
Medium Temperature : Max 150 C
Electrical protection :IP67
Power supply : 5 ... 24 VDC
Body material : 316 Stainless steel
Turbine material :17PH4 Stainless steel
Mounting position :Horizontal and vertical
Seal : peek ( polyetheretherketone )
