Magnetic Inductive Flowmeter

Magnetic Inductive Flowmeter

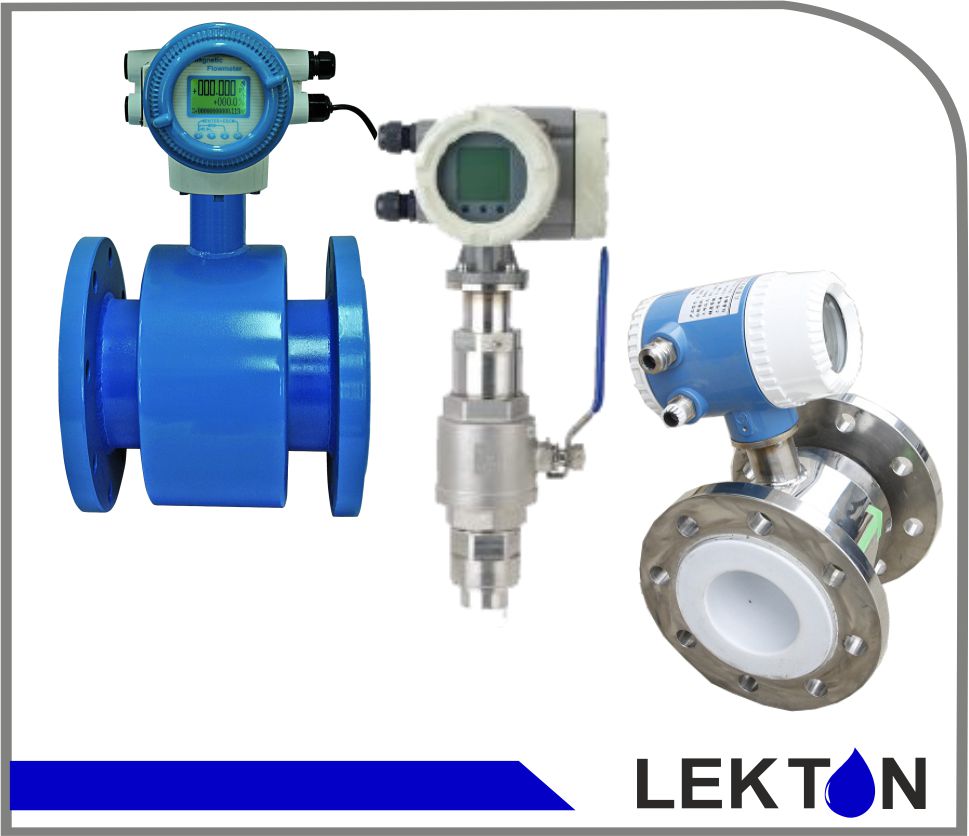

Model : LK-MAG / LK-MAGLDG (Insertion type )
Measuring range : 0,32-6,36 m3/h ...226,08-4521,6 m3/h.,liquid( conductive)
Connection : DN10...DN2800 thread /flanged
Body material: Paslanmaz çelik,sfero
Elektrod material :SUS 316L,Ti ,Hc
Power supply :220 VAC,24 VDC
Indicator :LCD,flow rate and total flow
Output signal :Puls,4-20 mA,RS485,HART
Max.Pressure : 64 bar
Liquid temperature : -10 °C~+120°C(PTFE)
Electrical protection :IP68 (sensor) ,IP67 (Electronic head)

The electromagnetic flowmeter is composed of two parts by electromagnetic flow sensor and electromagnetic flow converter.The operation of an electromagnetic flowmeter is based on Faraday law of electromagnetic induction.The mainly parts of the sensor are: measuring tube,electrode poles,excitation coil,iron core,yoke and housing. The measuring tube of the sensor is a short alloy tube whose diameter is D, the inner surface of it has an insulating liner.Two electrodes are fixed in the measuring tube along with the diameter direction of it and they usually flush with the inner surface liner.When excitation coil pulsed by two-way square wave,there generates a working magnetic field with a flux density B in the vertical direction of the measurement axis.In the meantime,if some electrical conductivity liquid flows at an average velocity V through the measuring tube ,cuts lines of the magnetic field,there generates induced electromotive force E.Electromotive force E is directly proportional to the product of flux density B、measuring tube diameter D and average velocity V,that's: E BVD. Electromotive force E(flow signal) is measured by the electrodes and transmitted to transducer through cable.After the transducer handles the flow signal by magnifying it, the flow and total amount can be displayed,also will output pulse and analog current etc.

Carried Standard

ANSI/DIN/JIS

DN

3.6.10.15.20.25.32.40.50.65.80.100.125.150.200.250.300.350.400.450.500.
600.700.800.900.1000.1200.1400.1600.1800.2000.2200.2400.2600.2800.3000

Max.Flow Velocity

15m/s

Accuracy

±0.5% of indicating value(flow velocity 0.8m/s); ±4mm/s(flow velocity<0.8m/s )

Fluid Conductivity

≥5uS/cm

Nominal Pressure

4.0MPa

1.6MPa

1.0MPa

0.6MPa

6.3,10MPa etc.

DN3~DN150

DN15~DN600

DN200~DN1000

DN700~DN3000

Special Ordering

Lining Material

PTFE,Poly neoprene,Polyurethane,F46,PFA with net

Sensor

-25 deg.C~+60 deg.C

Convertor and integrated type

-10 deg.C~+60 deg.C

Fluid Max.Temperature

Integrated type

70 deg.C

Separated type

Poly Neoprene Lining

80 deg.C;120 deg.C(notes in order)

Polyurethane Lining

80 deg.C

PTFE Lining

100 deg.C;150 deg.C(notes in order)

FEP Teflon

PFA with net

Material of signal electrode and ground electrode

SS316L,HastelloyB,HastelloyC,Ti,Ta,Platinum-iridium alloy,Stainless steel coating with tungsten carbide

Electrode drawknife apparatus

DN80~DN3000

Connection flange material

Carbon steel

Connection ring material

Stainless steel1Cr18Ni9Ti

Enclosure protection

ND15~DN3000 separated sensor with rubber or PU lining

IP65 or IP68

Integrated(rounded converter)

IP65

Other sensors and separated converter

IP65

Explosion proof sensor and converter

IP65

Spacing(separated type)

Normally the separation distance between converter and sensor is less than 100m,if more please order specially.(Note: our company provide 10m length standardly,if need more, please indicate the length in order, and the cost will be add more)

Output of analog current

0~10mA load resistance 0~1.5Ω

4~20mA load resistance 0~750Ω

Frenquency output

1~5000Hz

Pulse output

Separated type output by two way: forward and reverse flow; integrated type output one way

Frenquency range:0~5KHz,uper limit 1~5 optionally

Square wave or pulse with 25ms pulse width

Transistor switch output with isolation protection,can absorb 250mA current and withstanding 35V voltage

Two-path alarm output

Alarmable(programable)high/low flow,blank pipe,fault condition,forward and reverse flow,simulation volume exceeds range,pulse volume exceeds range,disconnect pulse small signal

Transistor switch output with isolation protection,can absorb 250mA current and withstanding 35V voltage(Not isolated with pulse output)

Digital communications

RS232,RS485,HART(add specially)

Explosion proof mark

Integration ExdeiaⅡCT4

Separated Exd[ia] ⅡCT4(converter) ExdeiaⅡCT4(sensor)

[Type Selection]
LKMAG □ □ □ □ □ □ □ □ □ □ □
│ │ │ │ │ │ │ │ │ │ │
a b c d e f g h i j k

a. Connect type
A Flange connection
B Clamping connection

e. electrode material
1.Stainless steel 0Cr18Ni12Mo2Ti
2.HastelloyB
3.HastelloyC
4.Titanium
5.Platinum-iridum alloy
6.Tantalum

b. Nominal bore(mm)
Code DN Code DN Code DN
015 15 250 250 10A 1000
020 20 300 300 12A 1200
025 25 350 350 14A 1400
040 40 400 400 16A 1600
050 50 450 450 18A 1800
065 65 500 500 20A 2000
100 100 600 600 22A 2200
150 150 700 700 24A 2400
200 200 800 800 26A 2600
900 900 28A 2800
30A 3000

f. Shell protection
1.IP65
2.IP68+IP65(IP68sensor+IP65converter)(c only can select 2,3;g only select 0;i only select CR;K only select 01,02)
3.IP67(c only select 2,3;g only select 0;i only select CH; k only select 02)

g.Explosion-proof mark
0.Nothing
1.Integrated type (f only select 1,k only select 03)
2.Separated type (f only select1,k only select 02)

a.Nominal pressure(MPa)

06 0.6 (DN700~DN3000)
10 1.0 (DN15~DN1000)
16 1.6 (DN15~DN600)
40 4.0 (DN15~DN150)
xx for special order

h.Accessory

  1. Nothing
  2. Grounding electrode(DN25~DN3000)
  3. Grounding ring(DN15~DN3000)
  4. Electrode scraper structure(DN80~DN3000)

i. Structure
CR Divided type
CH Integrated type

j. Power supply
1.85~265V AC 45~400Hz
2.16~40V DC 3.Lithium battery

b.lining material

1.FTFE(F4) (DN15~DN1000)
2.Polychloroprene (DN15~DN3000)
3.Polyurethane (DN15~DN600)
4.FEP(F46) (DN15~DN250)
5.screened PFA (DN50~DN250)

k. Converter type
01.Square separated type/single current/dipluse/double knock
02.Round separated type/single current/dipluse/double knock
03.Round integrated type/single current/single pulse/double knock
04.Square integrated type/single current/single pulse/double knock
Notes: 1. Communication protocol: RS232,RS485.HART optional
2.Batch control function optional
3.GPRS remote monitoring function optional
