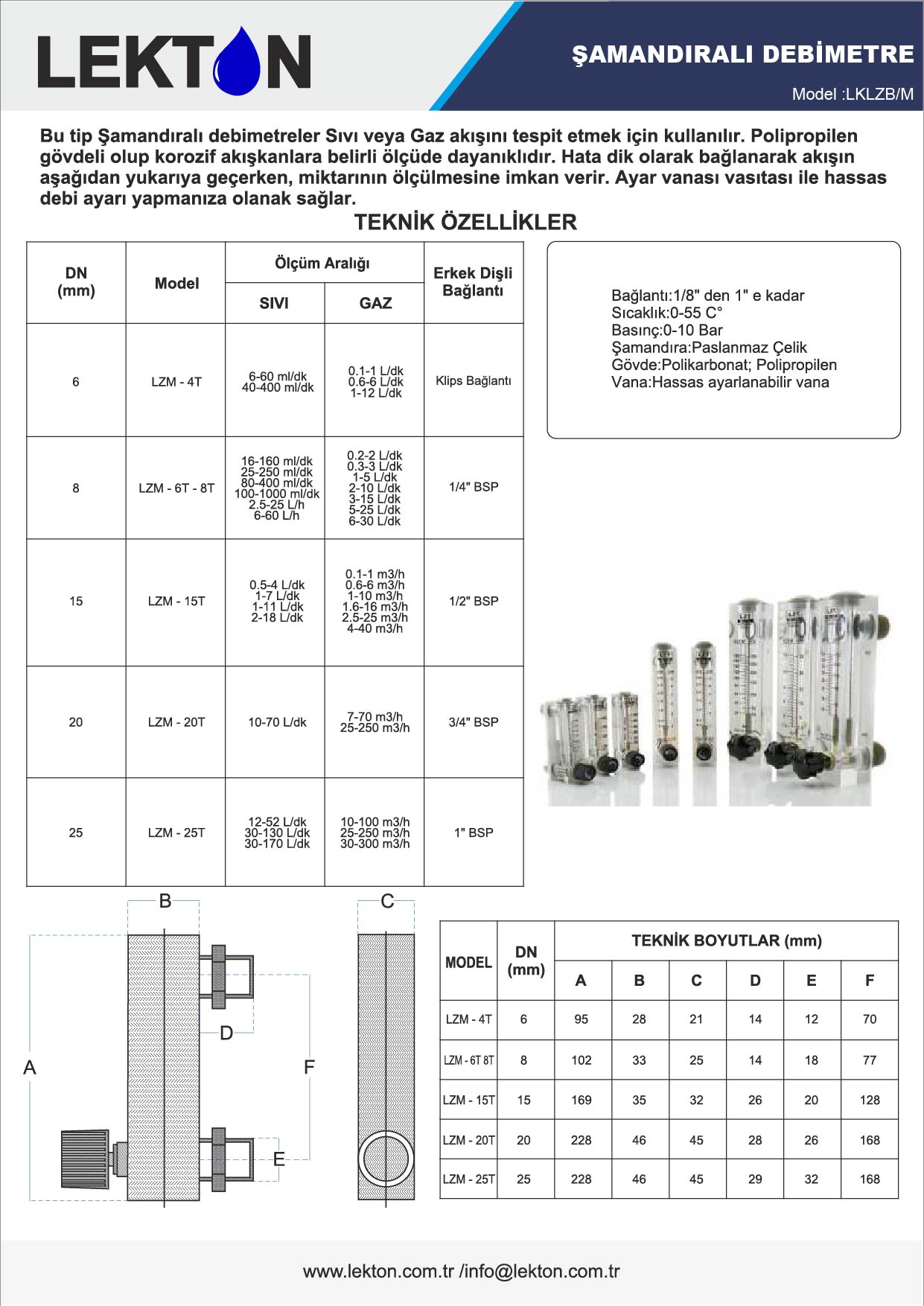

Acrylic panel type float flowmeter

Model : LK-LZB/M
Measuring range : 6-60 ml/dk...30-170 m3/sa. ,liquid (water ,20 °C ,1 bar )
0,1-1 lt/dk... 30-300 m3/sa.,gas (standart calibration :air , 20 °C ,1 bar )
Connection : Back 1/8" ..1"
Body material : Acrylic
O-ring : Viton
Float material: Stainless steel
Max.Pressure : 10 bar
Flow temperature : -20 °C~+55°C
Adjustment valve : with needle valve

---

---
